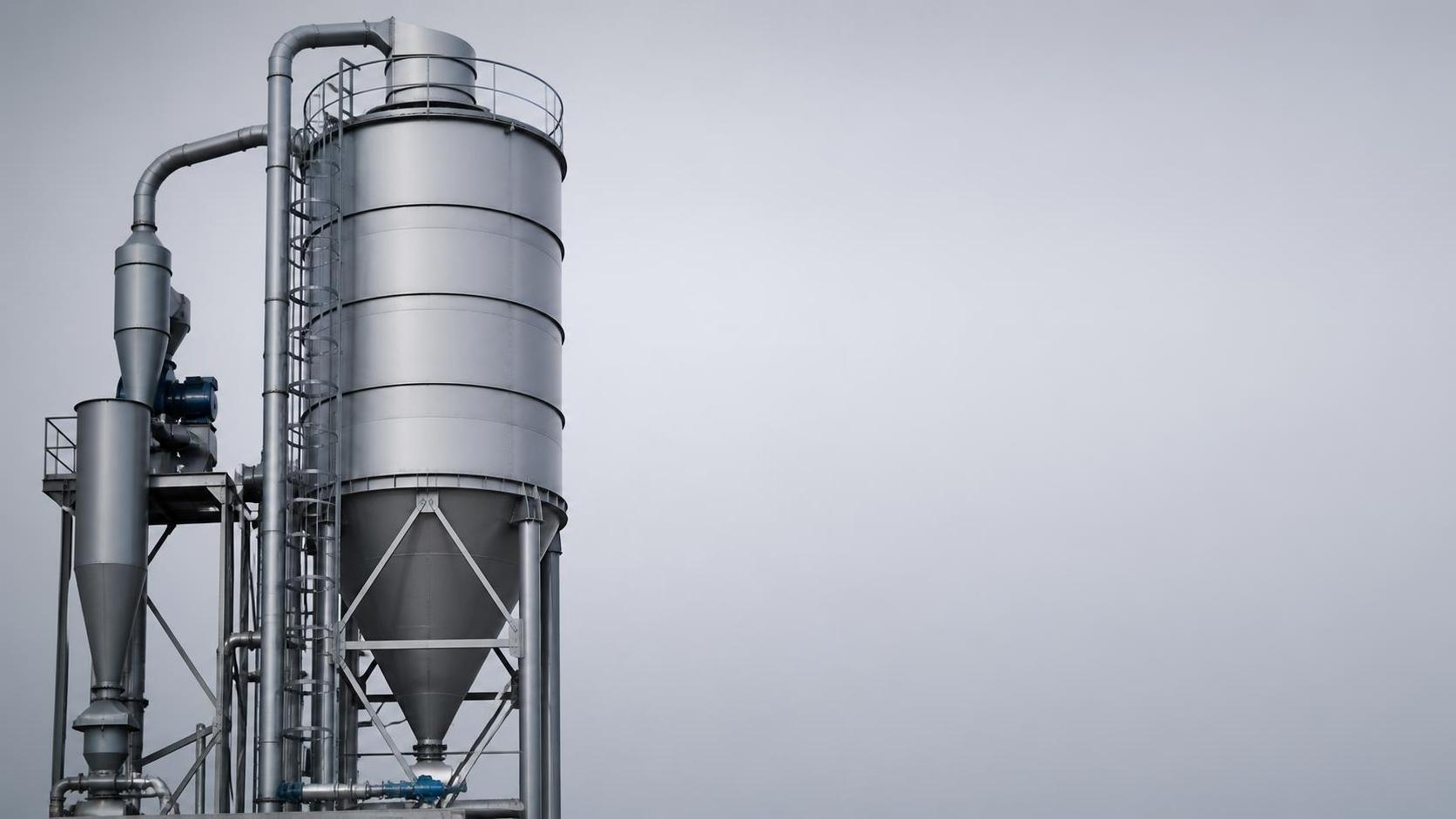

Fly Ash Silo Design: Height, Venting, and Discharge Requirements

A properly designed fly ash silo is critical for safe storage, stable venting, and reliable discharge performance. For technical evaluators, key factors such as silo height, pressure control, dust management, and flow efficiency directly affect project safety and long-term operation. This article examines the essential design requirements for fly ash silo systems, helping you assess structural suitability, ventilation capacity, and discharge reliability with greater confidence.

Before writing, the core search intent is clear: the reader is not looking for a general definition of a fly ash silo, but for practical design criteria they can use to judge whether a silo is technically sound, safe, and fit for service.

Technical evaluators usually care most about whether the silo can store material without bridging, vent air effectively during loading, discharge consistently under real operating conditions, and remain structurally stable over time.

The most useful content is therefore the kind that translates design features into evaluation points: height limits, venting capacity, dust collection, flow aid devices, outlet geometry, and maintenance access.

This article should focus on decision-making factors and performance risks, while keeping broad background explanations short. Generic descriptions of fly ash or silo history add little value for this audience.

What a Fly Ash Silo Must Do Well

A fly ash silo is not simply a storage vessel. It must receive material under pressure, separate conveyed air, prevent dust release, and discharge powder at a controlled rate without interruption.

For technical reviewers, the key question is whether the silo design supports stable operation under variable filling and unloading conditions, especially when ash properties change with source, moisture, or particle size.

The best designs combine enough storage volume with predictable flow behavior, proper venting, and simple maintenance access. When any one of those areas is weak, the whole system becomes harder to operate and evaluate.

In practice, many project teams compare a fly ash silo against other compact storage solutions such as Household Small Grain Assembly Silos to understand how modular construction, height limits, and discharge details affect site planning.

How to Judge Silo Height

Silo height affects storage capacity, foundation demand, wind load, equipment arrangement, and installation logistics. A taller silo may improve capacity efficiency, but it also increases structural load and the importance of stability checks.

Technical evaluators should confirm whether the selected height fits the site layout, truck or pneumatic conveying system, discharge equipment, and access platforms. A silo that is too tall for the site often creates avoidable civil and maintenance issues.

Height also influences internal pressure distribution during filling and the material head acting on the outlet. That means height is not just a space question; it directly affects stress, venting, and discharge behavior.

Why Venting Capacity Cannot Be Treated Lightly

Venting is one of the most important design elements in a fly ash silo. During pneumatic filling, displaced air must leave the silo fast enough to avoid overpressure, backflow, filter overload, and dust escape.

A proper vent filter system should match the maximum filling rate, not just average conditions. If the venting capacity is undersized, pressure spikes can damage components or cause material to flow erratically into the silo.

Evaluators should review filter area, cleaning method, differential pressure control, and whether the vent system can handle short-term surges. In many failures, the problem is not the silo body but a venting system that was never sized for real operating peaks.

Dust control is equally important. A fly ash silo should keep emissions contained while allowing the vent system to release air efficiently. Poor vent design creates housekeeping problems, but it can also signal deeper process imbalance.

What Makes Discharge Reliable

Reliable discharge depends on flow pattern, outlet geometry, discharge cone angle, and the behavior of the stored ash. Fly ash can compact, arch, or rat-hole if the silo does not encourage mass flow or controlled funnel flow.

Review the outlet size and the discharge equipment together. A well-sized outlet is not useful if the feeder, rotary valve, or screw conveyor cannot maintain a steady pull from the silo under real conditions.

Flow aid devices may be necessary, but they should not be used to compensate for a fundamentally poor silo design. Vibration, aeration, and air cannons can help, yet they add complexity and maintenance demands.

A useful evaluation approach is to ask whether the silo can discharge after idle periods, during humid weather, and at partial inventory levels. These are the situations where weak discharge design usually appears first.

Structural and Safety Points Evaluators Should Check

Structural review should cover shell thickness, stiffening arrangement, foundation interface, access openings, and the effect of repeated filling cycles. A silo used for fly ash may face both static and dynamic loading over its service life.

Also check corrosion protection and sealing details. Fly ash is abrasive, and moisture can accelerate deterioration at joints, discharge zones, and inspection points. Small defects here often become major maintenance costs later.

Safety design should include pressure relief, overfill protection, safe access to equipment, and practical inspection routes. If maintenance crews cannot inspect or service the silo safely, the design is incomplete regardless of capacity.

How to Compare Design Options in Real Projects

When comparing suppliers or technical proposals, focus on measurable items: silo height, effective volume, vent filter capacity, discharge rate, internal flow aids, and access layout. Vague claims of “stable performance” are not enough.

Ask for operating assumptions as well. A silo designed for dry, free-flowing ash may perform very differently from one handling variable industrial powder with higher moisture or finer particles.

It is also worth reviewing installation and lifecycle cost together. A lower-priced silo can become expensive if it needs frequent cleaning, extra flow aids, or premature repair of venting and discharge systems.

Practical Evaluation Checklist

Start with capacity and height suitability, then check whether the venting system is sized for peak filling conditions. After that, review outlet design, discharge equipment, and measures against bridging or buildup.

Next, confirm the structural package: foundation loads, access design, corrosion protection, and inspection points. These items determine whether the silo is merely installable or genuinely operable over time.

Finally, test the design against your actual material conditions. If the ash source, moisture content, conveying method, or operating cycle differs from standard assumptions, the silo should be judged on that real profile, not on brochure values.

Conclusion

A good fly ash silo design is defined less by appearance than by how well it balances height, venting, discharge, and structural reliability. For technical evaluators, the right decision comes from checking whether each part supports stable operation under real site conditions.

When these requirements are aligned, the silo can store material safely, control pressure during filling, and discharge consistently with lower maintenance risk. That is the practical standard to use when comparing fly ash silo options for long-term project performance.
